Description

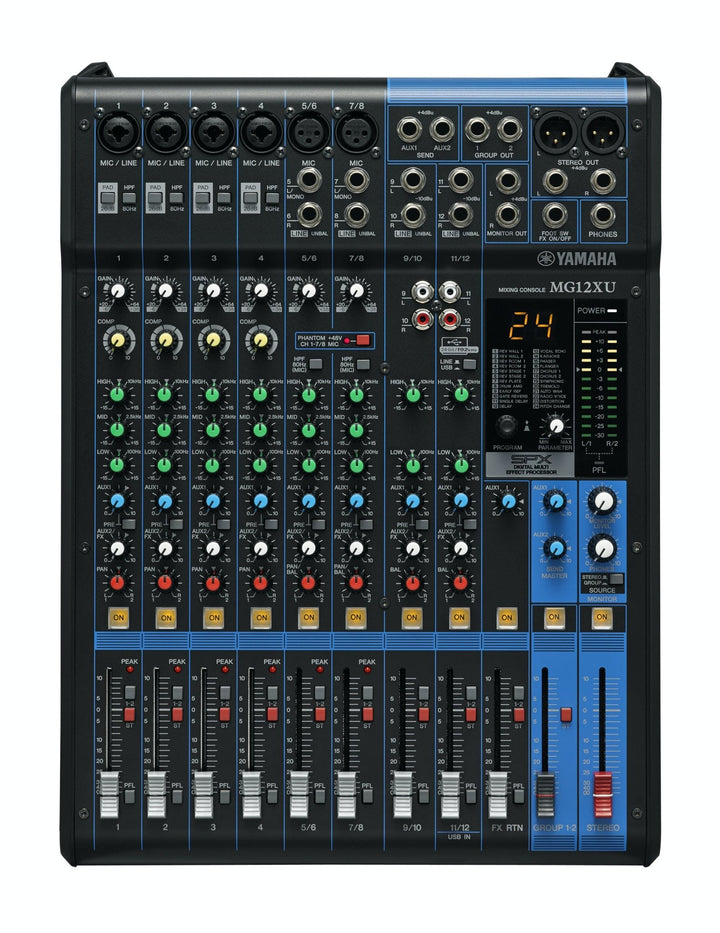

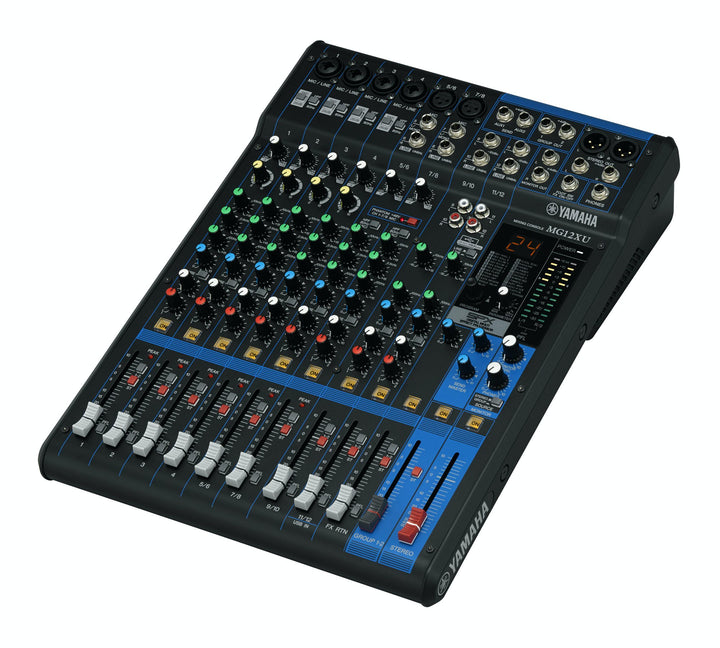

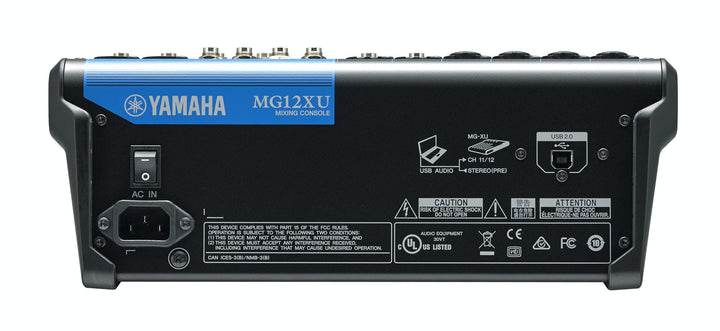

The powerful MG III Series Mixers from the legendary Yamaha brand offer sleek updated features, longstanding durability and renowned sound quality. Built with a rugged metal chassis, the MG-12XU is a 12-channel mixer boasting 6 D-Pre mic inputs for whisper-quiet operation, +48V phantom power and XLR balanced outputs suitable for any size set-up. With a built-in bank of Yamaha SPX effects and USB connection with Cubase AI recording software, the MG12XU provides precise control and enhanced sound. Yamaha's long history of expert craftsmanship and quality products is showcased here, with technologies from their high-end consoles integrated in this series of compact mixers, ranging from 6 to 20 channels. With an intuitive interface and resilient design, the MG Series delivers superior sound reliability and quality—exceeding all expectations for its class.
Yamaha MG12XU Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase Al DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
- Metal chassis
- Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
- Net Weight: 4.2 kg (9.3 lbs.)
